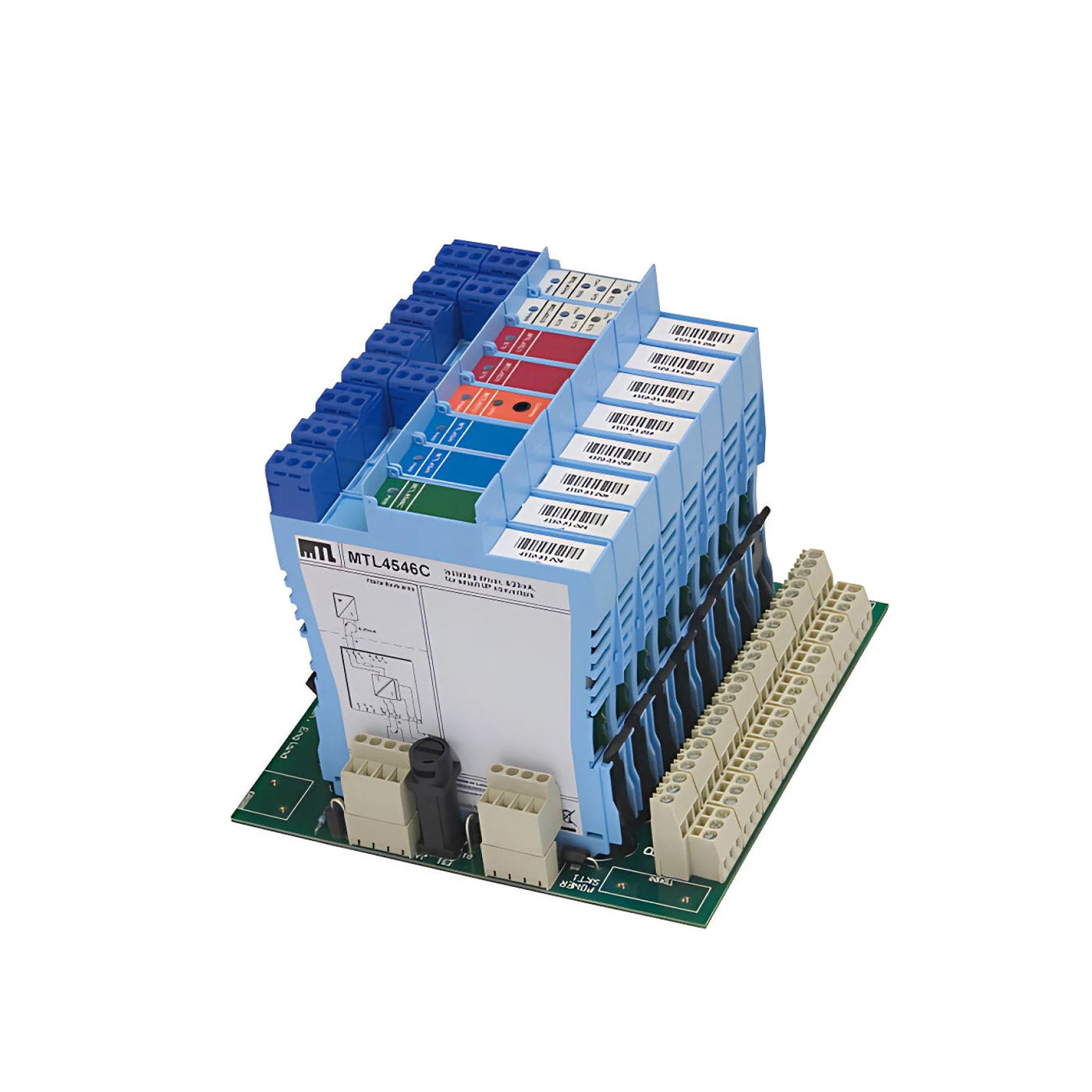

MTL CPS16 16-Way Backplane Screw-Clamp Connector

The MTL CPS16 is a 16-way backplane screw-clamp connector designed for use in process control and safety systems. It provides reliable connections with screw-clamp terminals and is suitable for multi-stranded or single-core wires. This backplane is designed for easy mounting on a standard 35mm DIN rail and ensures consistent performance across a wide range of environmental conditions. With its IP20 protection rating, the CPS16 is ideal for non-hazardous areas, providing secure connections and robust isolation for signal modules.

General Information

• Manufacturer: Eaton Electric Limited

• Model Number: MTL CPS16

• Type: 16-Way Backplane Screw-Clamp Connector

• Number of Channels: 16

• Output Signal Type: Not applicable (backplane)

• Compatibility: Compatible with MTL4500 and MTL5500 range modules

Features

• Reliable Power Distribution: The MTL CPS16 supports an input voltage range of 21V to 35V DC, with a maximum current capacity of 2A, ensuring stable power distribution to connected modules.

• Flexible Connections: Equipped with screw-clamp connectors, the CPS16 supports wiring up to 2.5mm², suitable for both multi-stranded and single-core wires, allowing for versatile installation options.

• Durable Construction: Designed for mounting on a 35mm DIN rail, the CPS16 is constructed to withstand operational demands, making it a dependable solution for industrial environments.

• Environmental Performance: The CPS16 can operate within a temperature range of -20°C to +60°C and can be stored between -40°C and +85°C, with humidity tolerance of 5% to 95% (non-condensing).

• Standards Compliance: The CPS16 complies with IEC 61326 for EMC and IEC 61010 for safety, ensuring reliable performance and adherence to industry standards.

• Safety Features: Provides isolation to protect other modules from interference, enhancing system reliability in control and safety applications.

• Accessories Included: The backplane comes with optional earth rail and tagging strip kits, making installation easier and more organized.

Technical Specifications

Electrical Specifications

• Input Voltage Range: 21V DC to 35V DC

• Input Current Capacity: Maximum 2A

Mechanical Specifications

• Mounting Type: 35mm DIN (top hat) rail

• Connection Type: Screw-clamp connectors

• Wiring Capacity: 2.5mm² screw-clamp terminals, suitable for multi-stranded or single-core wires

• Connection Positions per Module: 6

Environmental Specifications

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5% to 95% relative humidity, non-condensing

Physical Specifications

• Weight: 419g (excluding modules and accessories)

• Protection Level: IP20 (suitable for installation in non-hazardous areas)

Compliance and Certifications

• Standards Compliance: Complies with IEC 61326 (EMC) and IEC 61010 (safety)

Compliance and Certifications

The MTL CPS16 complies with the following standards:

• IEC 61326: EMC standard for electrical equipment

• IEC 61010: Safety requirements for electrical equipment
