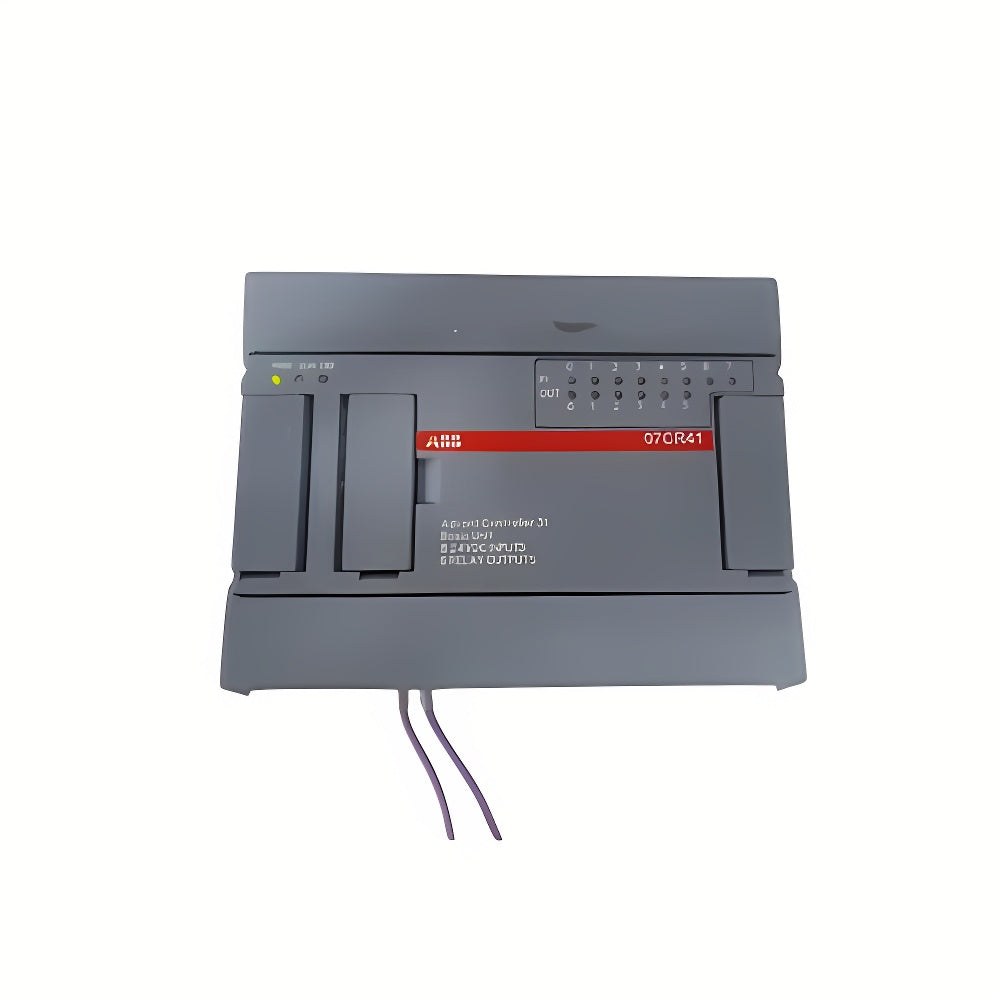

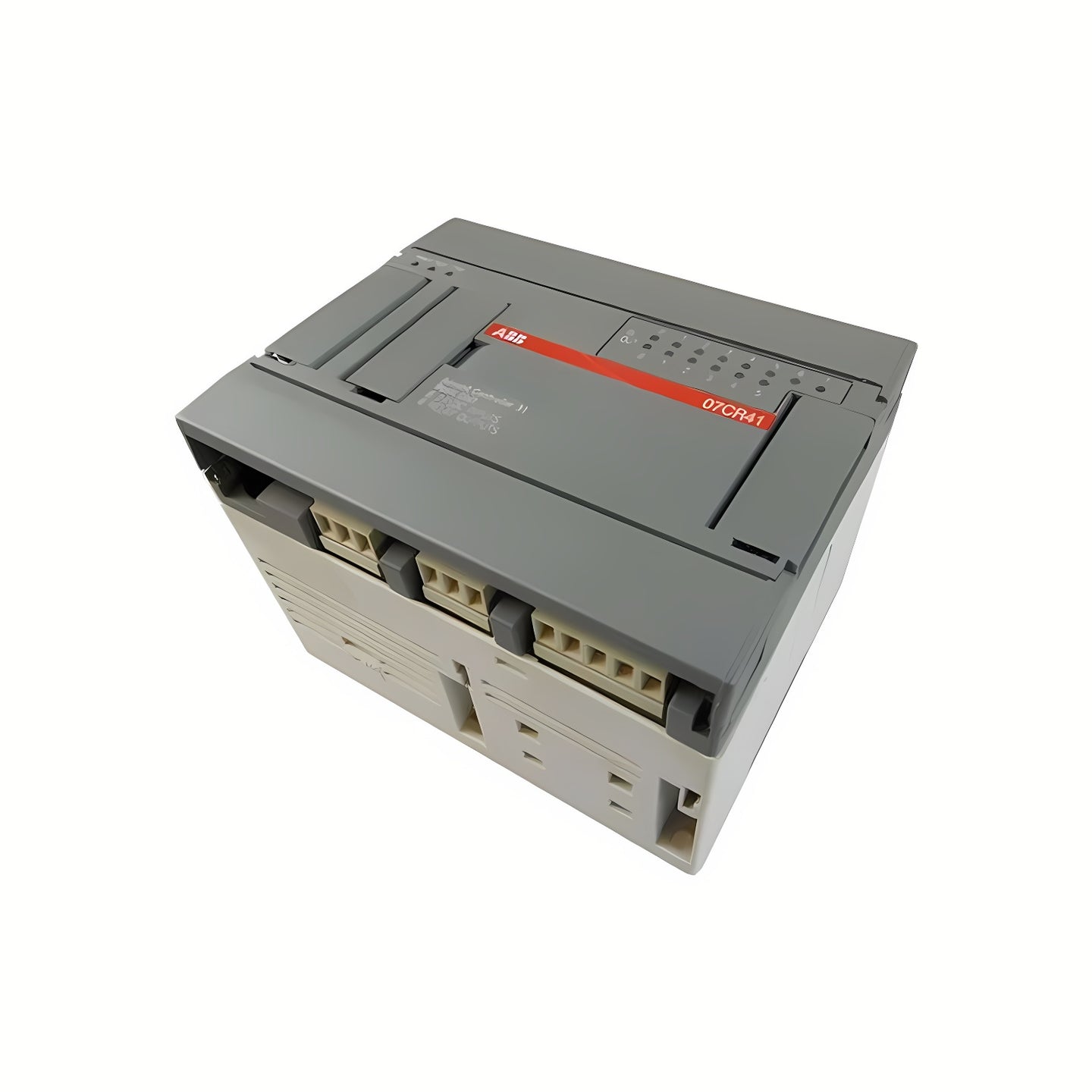

ABB 1SBP260021R1001 07 CR 41 Extensible Stand-alone Central Unit

The ABB 1SBP260021R1001 07 CR 41 Extensible Stand-alone Central Unit is designed for use in industrial automation environments requiring scalable and flexible control. With support for expansion modules, it provides a robust solution for controlling complex processes. The unit features a built-in processor capable of efficiently managing automation tasks and offers seamless integration with ABB control platforms. The 07 CR 41 can operate effectively in demanding industrial conditions, ensuring high reliability and performance across a temperature range of 0°C to +60°C.

General Info

• Manufacturer: ABB

• Model Number: 1SBP260021R1001 07 CR 41

• Type: Central Control Unit

• Compatibility: Compatible with ABB Advant, AC 31 control systems, and other related automation platforms

• Mounting Type: Rack mountable

• Application: Industrial automation, process control systems, distributed control systems (DCS), and system expansion

Product Features

• Scalable Control: Supports expansion modules, allowing users to customize the system as needed to meet specific control requirements. Up to 8 expansion modules can be added, providing additional I/O capacity for diverse applications.

• Efficient Data Processing: Equipped with a high-performance processor capable of executing control tasks with a processing speed of 0.6 ms per instruction cycle, ensuring rapid response for critical automation operations.

• Built-in Communication Interfaces: Features CS31 system bus communication for easy integration into existing ABB automation networks. The unit also includes RS-232 and RS-485 ports, allowing for flexible connectivity with external devices.

• Durable Design for Industrial Environments: Built to withstand harsh conditions, the unit operates within a temperature range of 0°C to +60°C, and can tolerate humidity levels of up to 95% RH (non-condensing). It also meets vibration resistance standards of 10-150 Hz, up to 4 g.

• Compact and Modular Design: Measuring 160 mm (height) x 100 mm (width) x 80 mm (depth) and weighing approximately 500 g, the 07 CR 41 is designed for easy installation in control cabinets. The modular design makes system expansion straightforward and flexible.

Technical Specifications

• Operating Voltage: 24 V DC nominal

• Max. Current Consumption: 0.3 A

• Power Consumption: 6 W typical, 8 W maximum under full load conditions

• Processor Speed: 0.6 ms per instruction cycle

• Expansion Capability: Supports up to 8 expansion modules

• Built-in Communication:

  • CS31 System Bus: Removable screw-type terminal blocks for secure connections

  • Serial Ports: RS-232 and RS-485 for external device connectivity

• Temperature Range:

  • Operating Temperature: 0°C to +60°C

  • Storage Temperature: -25°C to +70°C

• Humidity: 5% to 95% RH, non-condensing

• Vibration Resistance: 10-150 Hz, 0.35 mm amplitude or 4 g per IEC 60068-2-6

• Shock Resistance: 10 g for 11 ms per IEC 60068-2-27

• Dimensions: 160 mm (height) x 100 mm (width) x 80 mm (depth)

• Weight: Approximately 500 g

• Cooling Requirement: Natural convection cooling, no additional cooling systems needed

Compliance and Certifications

• CE Marking: Compliant with European safety and performance standards

• RoHS Compliance: Free from hazardous substances, adhering to environmental regulations

• UL Certification: Recognized for meeting specific safety standards in the United States

• Flammability Rating: UL94 V-0 for enhanced fire safety

Applications

• Process Control Systems: Ideal for managing complex automation processes in distributed control systems, providing reliable control and monitoring.

• Industrial Automation: Facilitates efficient communication and control between multiple devices, making it well-suited for diverse automation tasks in manufacturing and processing industries.

• System Scalability: Suitable for extending control capabilities by adding expansion modules, providing flexibility in automation solutions for evolving industrial needs.
