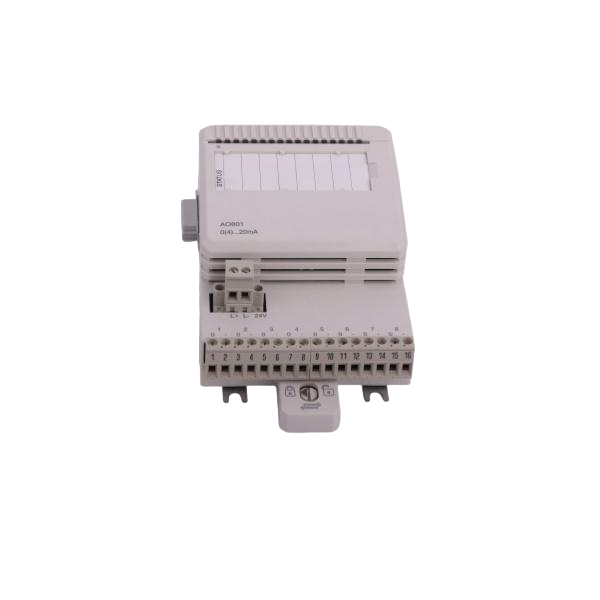

ABB AO801 3BSE020514R1 S800 I/O Series Analog Output Module

The AO801 Analog Output Module is equipped with eight unipolar analog output channels. It conducts self-diagnostic procedures on a cyclical basis. A low internal power supply condition places the module in an INIT state, resulting in the absence of any output signal.

Features and benefits

• 8 channels of 0...20 mA, 4...20 mA outputs

• Analog Outputis to be short circuit secured to ZP or +24 V

• Process and power connection via detachable connectors
• OSP sets outputs to predetermined state upon error detection

Detailed Data

• Resolution: 12 bit
• Isolation: Groupwise isolated from ground
• Temperature Drift: Typ 30 ppm/°C, Max 50 ppm/°C
• Rise Time: 10 µs
• Under/Over Range: - / +15%
• Output Load: Max 850 Ω
• Error: 0.1%
• Rated Insulation Voltage: 50 V
• Dielectric Test Voltage: 500 V a.c.
• Power Dissipation: 3.8 W
• Current Consumption +5 V Modulebus: 70 mA
• Current Consumption +24 V External: 200 mA
• Temperature Drift: Typ 30 ppm/°C, Max 50 ppm/°C
• Rise Time: 10 µs
• Update Cycle Time: 1 ms
• Current Limiting: Short circuit proof current limited output
• Maximum Field Cable Length: 600 meters (656 yards)
• Stripping Length: 6-7.5 mm, 0.24-0.30 inch
• Supported Wire Size:
  • Solid: 0.05-2.5 mm², 30-12 AWG
  • Stranded: 0.05-1.5 mm², 30-12 AWG
• Recommended Torque: 0.5-0.6 Nm

Environment and Certification

• EMC: EN 61000-6-4 and EN 61000-6-2
• Overvoltage Categories: IEC/EN 60664-1, EN 50178
• Equipment Class: Class I according to IEC 61140; (earth protected)
• RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
• WEEE Compliance: DIRECTIVE/2012/19/EU
• CE Mark: Yes
• Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
• Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
• Marine Certification: ABS, BV, DNV, LR
• Temperature, Operating: 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
• Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
• Pollution Degree: Degree 2, IEC 60664-1
• Corrosion Protection: ISA-S71.04: G3
• Relative Humidity: 5 to 95 %, non-condensing
• Max Ambient Temperature: 55 °C (131 °F), for vertical mounting 40 °C (104 °F)
• Protection Class: IP20 according to IEC 60529
• Mechanical Operating Conditions: IEC/EN 61131-2

Dimensions

• Width: 86.1 mm
• Depth: 58.5 mm
• Height: 110 mm
• Weight: 0.24 kg
