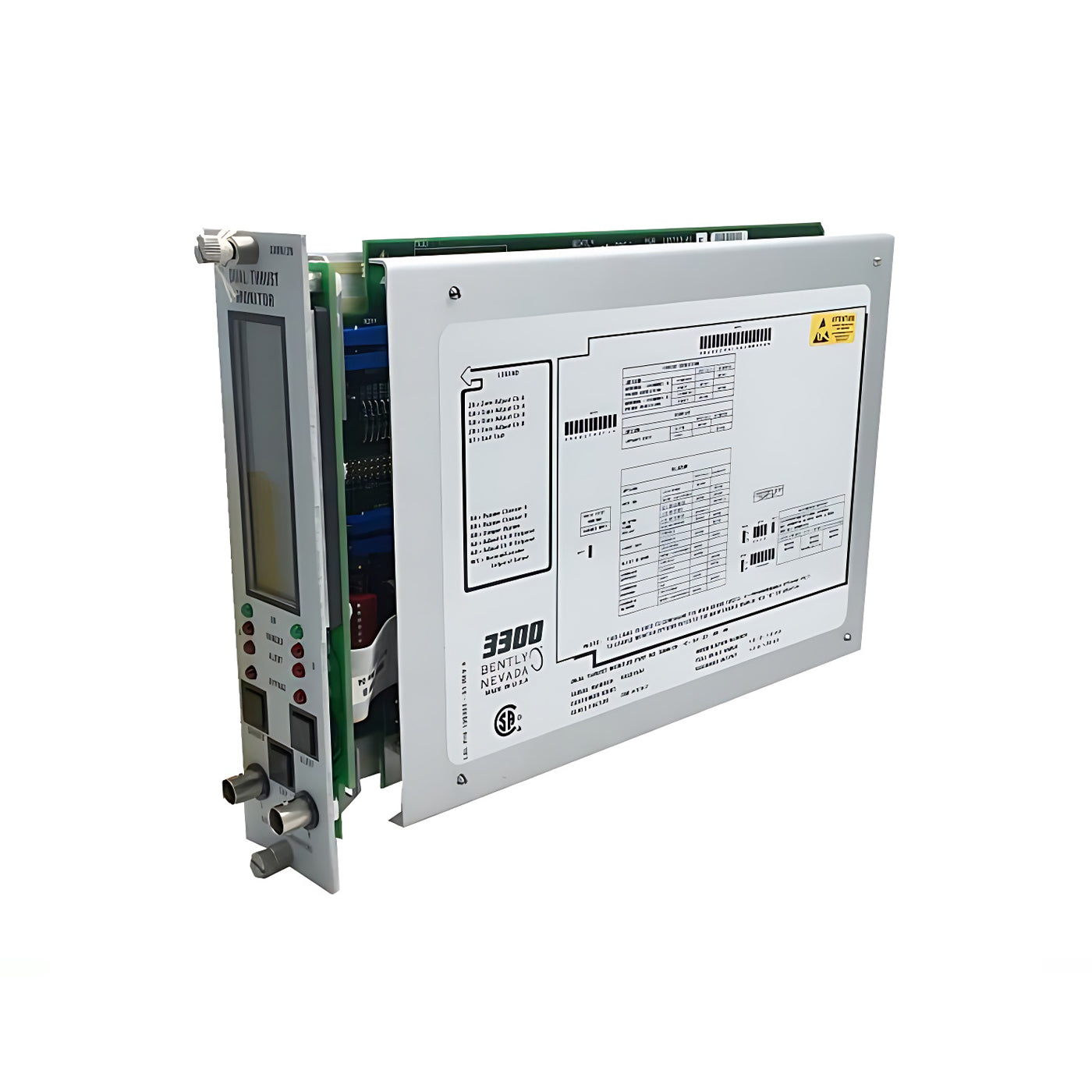

Bently Nevada 3300/20-13-02-01-00-00 Dual Thrust Position Monitor

The Bently Nevada 3300/20 Dual Thrust Position Monitor is a state-of-the-art device designed for continuous monitoring of axial shaft position in machinery. It plays a critical role in providing early warnings of thrust bearing failures by measuring two independent channels of shaft axial position relative to the axial clearances within the machine.

Key Features:

• Dual Thrust Monitoring: Simultaneously monitors two separate thrust components to ensure comprehensive tracking of axial displacement.
• Real-time Position Tracking: Offers continuous feedback on the current position of each thrust element.
• Precision Measurement: High-precision measurements provide accurate monitoring of thrust positions, essential for preventing equipment failures.
• Feedback Mechanism: Relays position information to a control system or operator, enhancing maintenance response times.
• Customizable Thresholds: Users can set specific alarm thresholds for acceptable axial clearance ranges.
• Alert System: Triggers alerts when thrust components exceed predefined limits, enabling prompt intervention.
• Data Logging: Records historical data on thrust positions for analysis and troubleshooting.
• Remote Monitoring: Facilitates oversight from a distance, improving operational efficiency.
• Compatibility: Integrates seamlessly with various thrust mechanisms or systems.
• User Interface: Features an intuitive user interface for easy configuration and monitoring.
• Diagnostic Tools: Provides diagnostics for identifying issues in thrust components.

Technical Specifications:

• Part Number: 3300/20
• Manufacturer: Bently Nevada
• Series: 3300
• Input Signal: 0 to -10 Vdc
• Input Impedance: 100 Ohm
• Power Consumption: 7.7 watts
• Shaft Power Supply: -24 Vdc
• Transducer Power Supply: -24 Vdc
• Operating Temperature: 0 to +65°C
• Humidity: 95%
• Weight: 1 kg
• Resolution: 0.3662 A per bit
• Dimensions: 9.50 x 4.50 x 1.00 inches

The Bently Nevada 3300/20 is an essential tool for industries that require precise monitoring of thrust position to prevent machinery failures, particularly in sectors like power generation and heavy manufacturing. By integrating advanced monitoring features with robust construction and precision measurement capabilities, it ensures the reliability and safety of rotating equipment.
