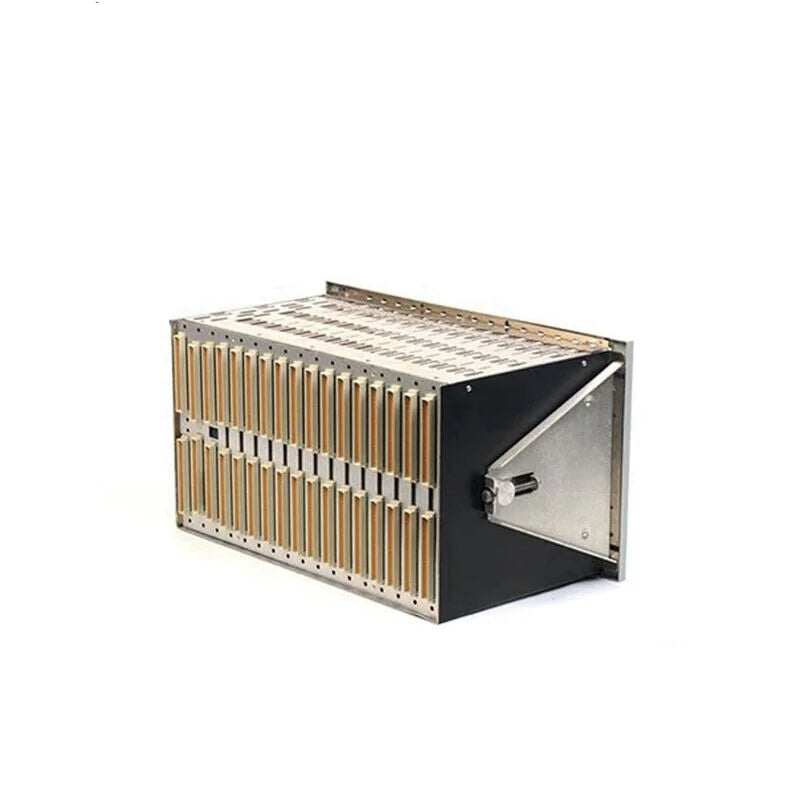

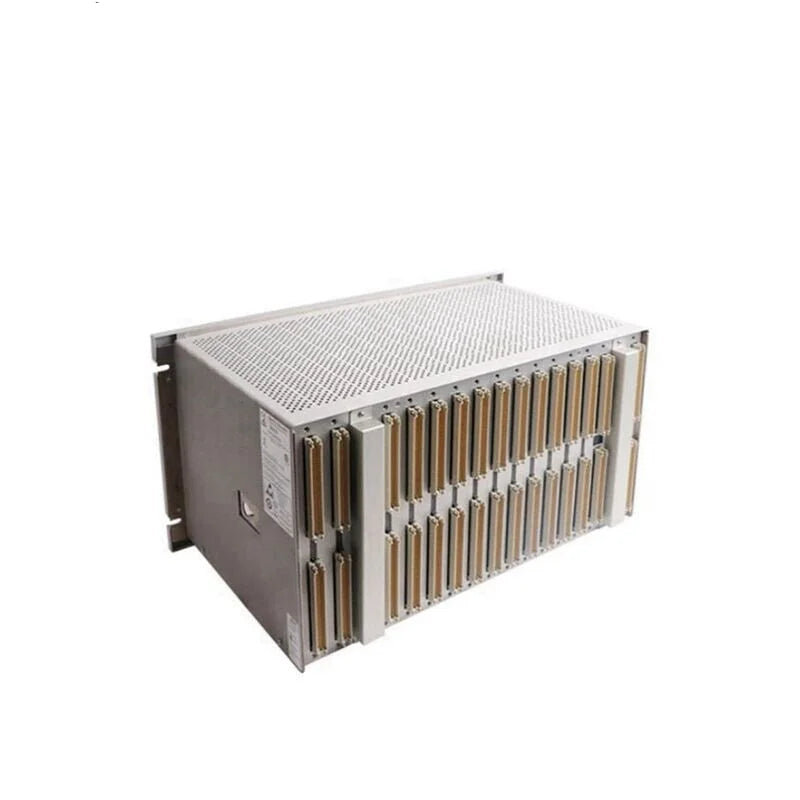

Bently Nevada 3500/05-02-05-00-00-00 System Rack 12-inch

General Info

• Manufacturer: Bently Nevada (a division of Baker Hughes)
• Model Number: 3500/05
• Type: System Rack for Monitoring Modules
• Application: Used for mounting Bently Nevada 3500 series monitor modules and power supplies

Product Description

The Bently Nevada 3500/05 System Rack is a critical component for mounting all 3500 monitor modules and power supplies. It facilitates communication between the modules by allowing them to be placed close to each other within the rack. The rack is available in two different sizes: a full-size 19-inch EIA rack with 14 module slots, and a mini-rack with 7 module slots.

There are multiple mounting options for the rack:

1. Panel Mount: Mounts to rectangular cutouts in panels, using clamps supplied with the rack. Wiring and I/O modules are accessible from the rear.
2. Rack Mount: Fits into standard 19-inch EIA rails. Wiring and I/O modules are accessible from the rear.
3. Bulkhead Mount: Mounts against a wall or panel with front-accessible wiring and I/O modules (not available for the mini-rack).

Product Features

• Two Sizes Available:
  • Full-Size Rack: 19-inch EIA rack with 14 available module slots.
  • Mini-Rack: 12-inch rack with 7 available module slots.
• Mounting Formats:
  • Panel Mount, Rack Mount, and Bulkhead Mount (for full-size racks only).
• Power Supply Positioning: Power supplies and the rack interface module must occupy the far-left rack positions, while remaining slots are available for monitor modules.
• Internal Barriers Compatibility: Internal barriers can be installed in the rack to maintain system safety and enhance isolation.

Technical Specifications

Mechanical Specifications

• Rack Sizes:
  • Full-Size Rack:
    • Dimensions: 482.60 mm (19.000 inches) width
    • Depth: 265.94 mm (10.470 inches) for panel mount; 349.25 mm (13.750 inches) or 422.91 mm (16.650 inches) if used with internal barriers
  • Mini-Rack:
    • Dimensions: 304.80 mm (12.000 inches) width
    • Depth: 246.38 mm (9.700 inches)
• Mounting Options:
  • Panel Mount: Secures to panels using clamps. Wiring connections and I/O modules are accessible from the rear.
  • Rack Mount: Mounts to 19-inch EIA rails. Wiring and I/O modules are accessible from the rear.
  • Bulkhead Mount: Mounts against a wall or panel, with front-accessible wiring and I/O modules (not available for mini-rack).
• Power Supply Positioning: Must be mounted in the far-left rack position, along with the rack interface module.

Environmental Specifications

• Operating Temperature: -20˚C to +65˚C (-4˚F to +149˚F)
• Humidity: 0% to 95% Relative Humidity (non-condensing)
• Vibration Resistance: Built to withstand typical vibration conditions encountered in machinery monitoring environments.

Compliance and Certifications

• FCC Compliance: Complies with Part 15 of the FCC Rules, operating under the following conditions:
  1. This device may not cause harmful interference.
  2. This device must accept any interference received, including interference that may cause undesired operation.
• EMC Compliance:
  • European Community Directive: EMC Directive 2014/30/EU
  • Standards:
    • EN 61000-6-2: Immunity for Industrial Environments
    • EN 61000-6-4: Emissions for Industrial Environments
• Electrical Safety:
  • LV Directive: European Community Directive 2014/35/EU
  • Standard: EN 61010-1
• RoHS Compliance: Complies with the European Community Directive RoHS 2011/65/EU
• Hazardous Area Approvals:
  • CSA/NRTL/C: Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D
  • ATEX/IECEx: II 3 G; Ex nA nC ic IIC T4 Gc

Ordering Information

• Rack Size Options:
  • 01: 19-inch Rack (14 module slots)
  • 02: 12-inch Mini-Rack (7 module slots)
• Mounting Options:
  • 01: Panel Mount Option, Full-Size Rack
  • 02: Rack Mount Option, Full-Size Rack
  • 03: Bulkhead Mount Option (not available for Mini-Rack)
  • 04: Panel Mount Option, Mini-Rack
  • 05: Rack Mount Option, Mini-Rack
• Agency Approval Options:
  • 00: None
  • 01: CSA/NRTL/C (Class 1, Division 2)
  • 02: ATEX/IECEx/CSA (Class 1, Zone 2)
