Bently Nevada Cable

The Bently Nevada 3300 XL Extension Cables are specifically engineered to integrate seamlessly with the 3300 XL Transducer System, ensuring high-fidelity performance across all monitoring and measurement applications. For optimal system performance and measurement accuracy, it is essential that the electrical length of each system component is carefully maintained.

Key Technical Requirements:

• To achieve precise and reliable measurements, the electrical length of the proximity probe—when coupled with the extension cable—must align with the electrical length of the Proximitor unit. This alignment is critical to avoid measurement errors and ensure that the system delivers accurate, consistent data. The electrical length tolerance should be within ±0.2% of the nominal length to maintain system integrity.

Electrical Length Matching:

• Proximity Probe + Extension Cable: The total electrical length of the proximity probe and extension cable must match the electrical length of the Proximitor unit, ensuring consistent signal transmission.
• Proximitor Unit: The electrical length of the Proximitor unit should match the combined electrical length of the probe and extension cable within the specified tolerance range.

Performance Benefits:

• Measurement Accuracy: Consistency in electrical length matching ensures accurate real-time measurements, preventing discrepancies that could lead to false alarms or missed fault conditions.
• Reliable Monitoring: With proper length alignment, the system offers high-precision monitoring, ensuring that machinery and equipment are continuously assessed with minimal risk of measurement failure.

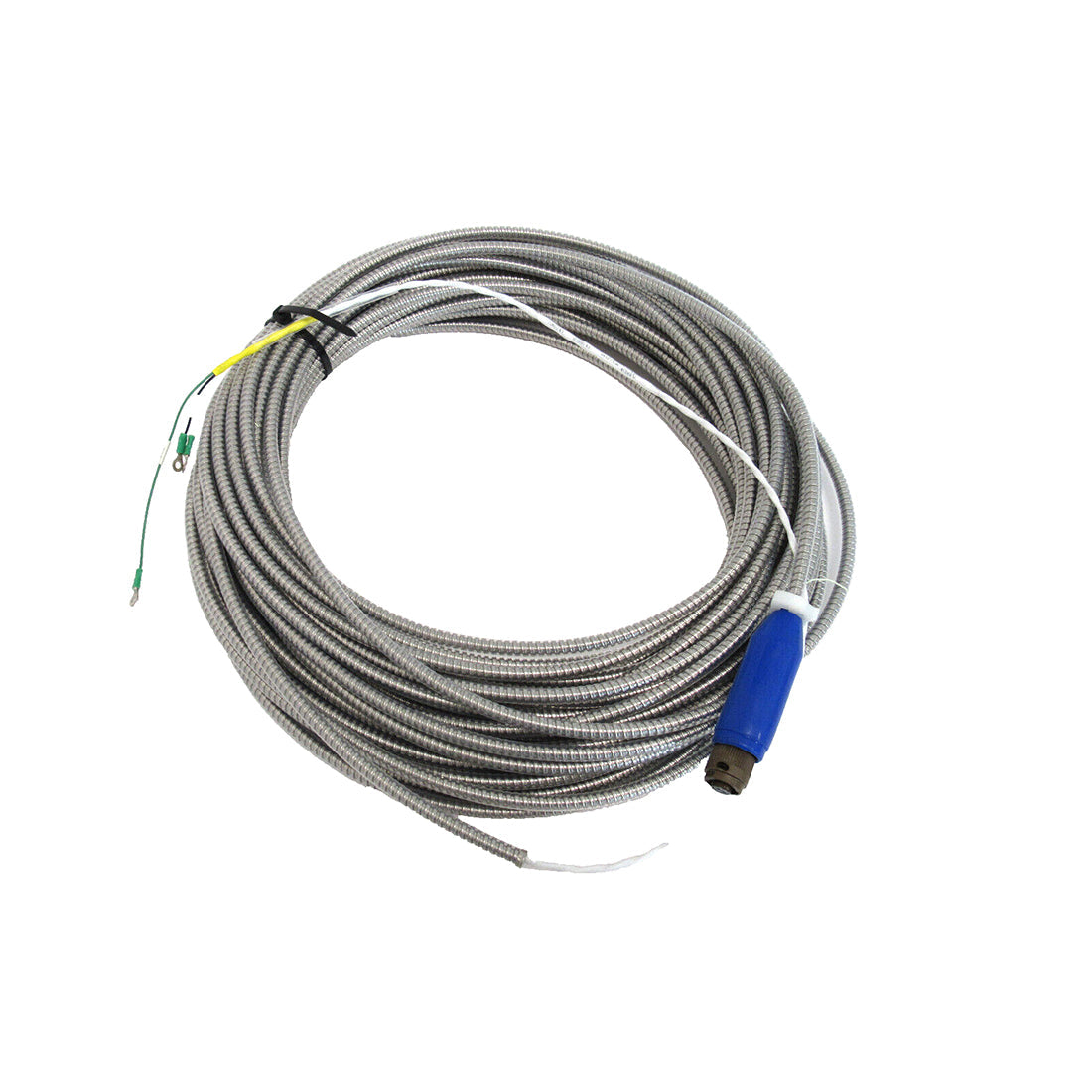

The Bently Nevada 3300 XL Extension Cables provide a robust, reliable connection between the transducer components, with lengths ranging from 1 meter (3.3 ft) to 5 meters (16.4 ft), and can be customized for specific installations. They are constructed with high-quality, shielded materials to minimize electromagnetic interference (EMI) and ensure stable signal transmission even in high-noise environments. The cables are rated for operating temperatures between -40°C and +85°C (-40°F to +185°F) and meet IP65 standards for protection against dust and moisture, ensuring reliability in harsh industrial settings.

By ensuring that the electrical lengths of all components are matched with precision, the 3300 XL Transducer System provides reliable, high-accuracy condition monitoring and vibration analysis, helping industries reduce downtime and improve the overall efficiency of machinery operations.

Spec Sheets

Bently Nevada 3300 XL Extension Cable Datasheet (2.1 MB)
