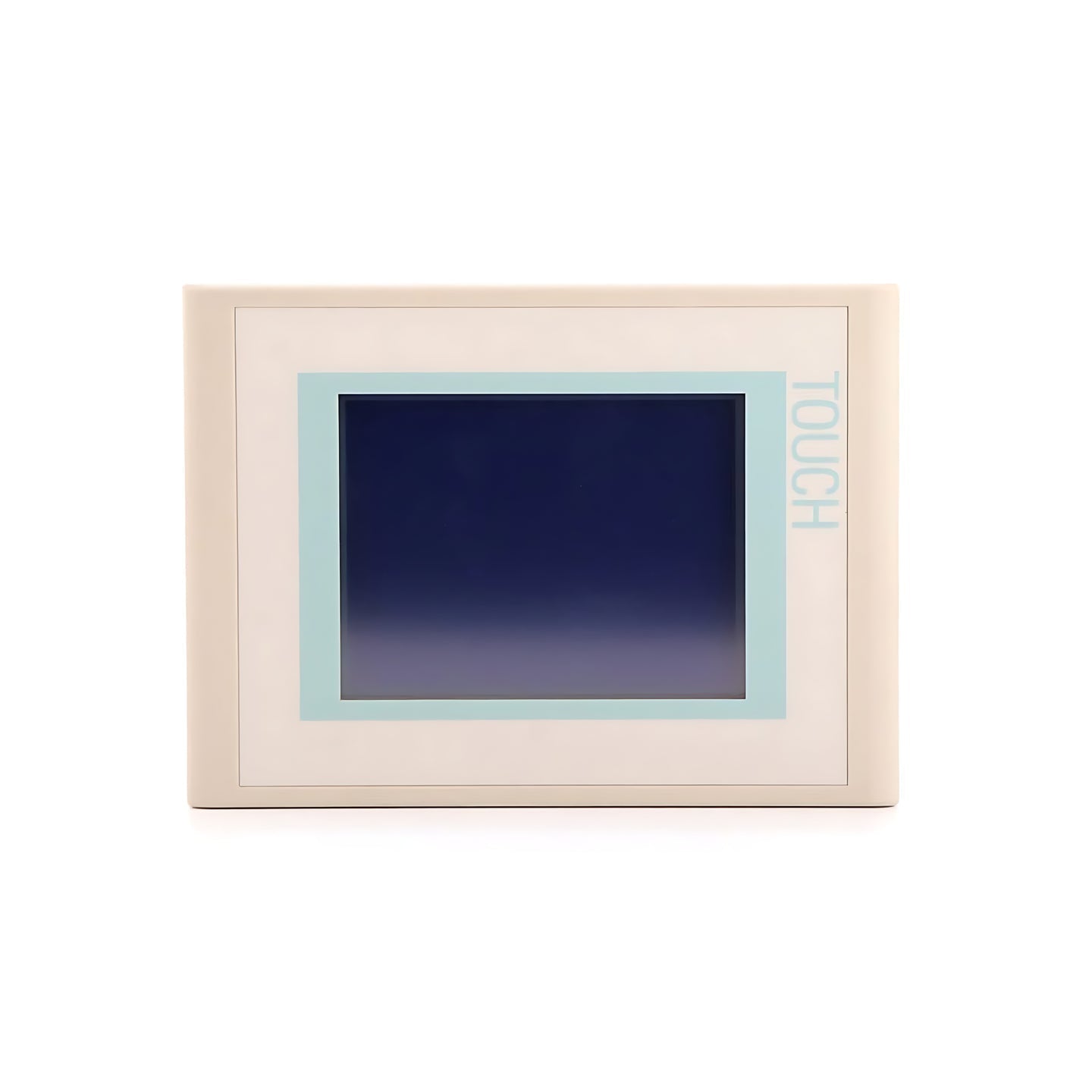

Siemens PanelView 6AV

The Siemens 6AV series represents a range of Human-Machine Interface (HMI) panels, designed for controlling and monitoring automated processes in industrial applications. These HMI panels are an integral part of Siemens' SIMATIC automation systems, offering an intuitive user interface for operators to interact with PLCs, DCS, and other automation components.

Key Models in the 6AV Series:

1. 6AV6 640-0AA11-3AX0: This model features a 4-inch display with high resolution, ideal for simple automation tasks and compact spaces. Often used in small machines or basic control systems.

2. 6AV6 640-0AC11-3AX0: A 7-inch TFT touchscreen with improved graphics and interactive features for medium-sized industrial applications. Suited for use in production lines or complex machinery.

3. 6AV6 640-0CX11-3AX0: A 10-inch touchscreen panel designed for advanced applications requiring high-resolution graphics and custom visualizations. This model is ideal for monitoring and control in larger automation environments.

4. 6AV6 641-0CX11-3AX0: A large 15-inch display, optimized for use in control rooms or areas requiring extensive data visualization. It features advanced features such as multi-touch support, high-performance processing, and high-level graphical capabilities.

Key Features of the Siemens 6AV Series HMI:

• High-Resolution Displays: Models in the 6AV series offer various display sizes ranging from 4 inches to 15 inches, providing high-resolution screens suitable for clear and precise operator interfaces. For instance, the 6AV6 640-0AC11-3AX0 features a 7-inch TFT display with 800x480 pixels.

• Touchscreen Interface: Many models in the series feature capacitive touchscreens that offer highly responsive and precise touch input, allowing operators to interact intuitively with the system.

• Advanced Graphics and Visualization: The 6AV series includes HMI panels with capabilities for displaying high-quality graphics, trends, and process visualizations. These are essential for more complex applications, especially in large-scale industrial environments.

• Flexible Communication Options: The HMI panels support various industrial communication protocols such as PROFINET, Ethernet/IP, and Modbus to enable easy integration with other control systems, PLCs, and devices.

Product Advantages:

• User-Friendly Interface: The intuitive design, touch functionality, and customizable display options enhance user experience, reducing the learning curve for operators.

• Durability and Reliability: Built for industrial environments, the 6AV series HMI panels are designed to withstand harsh conditions, including wide temperature ranges and mechanical stresses.

• Scalability: The modular design of the 6AV series allows users to scale from simple applications to large, complex systems with ease, making it adaptable to a wide range of industries and requirements.

System Integration and Compatibility:

• Seamless Integration: The HMI panels integrate seamlessly with Siemens PLCs, DCS, and SCADA systems, ensuring smooth data exchange and system performance.

• Wide Compatibility: Compatible with numerous communication protocols, these panels support integration with a variety of third-party devices and systems, enhancing their versatility in mixed-architecture environments.
